Rigidized® Metals Deep Textured Patterns
Rigidized® Metals’ deep-textured metals are created by a unique process, which enhances the durability and beauty of flat metals. Our texturing process can be applied to all metals, though our primary product is stainless steel; other materials available include aluminum, carbon steel, copper, brass and titanium. Our products are available in various widths and thicknesses, and can be rolled in both coil and/or sheet form. These offerings vary by pattern, surface type and alloy, and pattern depth varies with gauge.
ACC 4i
Stainless Steel Thickness: 0.018″-0.120″
Other Metal Thickness: 0.018″-0.125″
Max Width: 36″
1ACC
Stainless Steel Thickness: 0.018″-0.120″
Other Metal Thickness: 0.018″-0.125″
Max Width: 36″
1CS
Stainless Steel Thickness: 0.018″-0.075″
Other Metal Thickness: 0.010″-0.080″
Max Width: 48″
1HM
Stainless Steel Thickness: 0.018″-0.060″
Other Metal Thickness: 0.010″-0.060″
Max Width: 60″
1HR
Stainless Steel Thickness: 0.048″-0.060″
Other Metal Thickness: 0.048″-0.062″
Max Width: 48″

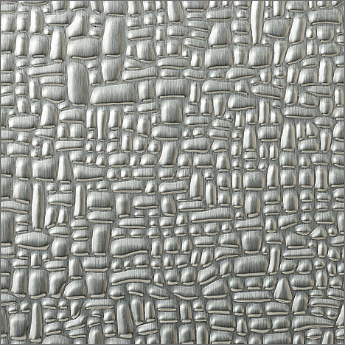

1NA®
Stainless Steel Thickness: 0.018″-0.075″
Other Metal Thickness: 0.010″-0.090″
Max Width: 48″

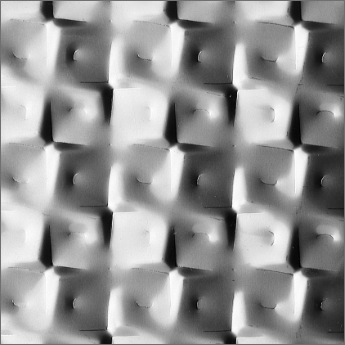

1RL
Stainless Steel Thickness: 0.018″-0.120″
Other Metal Thickness: 0.018″-0.125″
Max Width: 48″
1SLG
Stainless Steel Thickness: 0.018″-0.048″
Other Metal Thickness: 0.010″-0.062″
Max Width: 48″
1UN
Stainless Steel Thickness: 0.018″-0.120″
Other Metal Thickness: 0.018″-0.125″
Max Width: 48″
2FL
Stainless Steel Thickness: 0.024″-0.120″
Other Metal Thickness: 0.020″-0.125″
Max Width: 48″
2WL®
Stainless Steel Thickness: 0.018″-0.036″
Other Metal Thickness: 0.008″-0.032″
Max Width: 48″

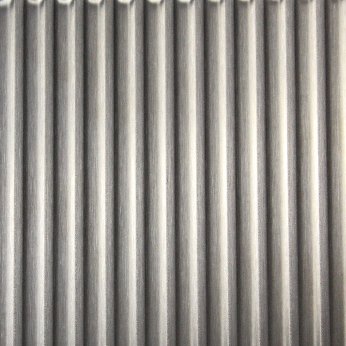

3FL
Stainless Steel Thickness: 0.018″-0.060″
Other Metal Thickness: 0.010″-0.062″
Max Width: 48″
3ND
Stainless Steel Thickness: 0.018″-0.036″
Other Metal Thickness: 0.024″-0.040″
Max Width: 48″
4LB
Stainless Steel Thickness: 0.018″-0.060″
Other Metal Thickness: 0.010″-0.090″
Max Width: 48″
5HR
Stainless Steel Thickness: 0.024″-0.060″
Other Metal Thickness: 0.025″-0.062″
Max Width: 48″
5WL®
Stainless Steel Thickness: 0.018″-0.075″
Other Metal Thickness: 0.008″-0.075″
Max Width: 60″
6HC
Stainless Steel Thickness: 0.024″-0.105″ / 0.120″
Other Metal Thickness: 0.024″-0.125″ / 0.120″
Max Width in 0.120″ Thickness: 36″
Max Width in all other Thicknesses: 48″
6SL®
Stainless Steel Thickness: 0.018″-0.048″ / 0.060″ consult factory for max width
Other Metal Thickness: 0.024″-0.125″
Max Width: 48″
6WL®
Stainless Steel Thickness: 0.018″-0.120″
Other Metal Thickness: 0.008″-0.125″
Max Width: 60″
60LTH
Stainless Steel Thickness: 0.018″-0.075″
Other Metal Thickness: 0.010″-0.090″
Max Width: 60″
RSS.3
Stainless Steel Thickness: 0.029″-0.120″
Other Metal Thickness: 0.036″-0.125″
Max Width: 60″
RTP®
Stainless Steel Thickness: 0.018″-0.120″
Other Metal Thickness: 0.010″-0.125″
Max Width: 60″
STP
Stainless Steel Thickness: 0.075″-0.105″
Other Metal Thickness: 0.080″-0.100″
Max Width: 48″
XTP
Stainless Steel Thickness: 0.024″-0.075″
Other Metal Thickness: 0.024″-0.080″
Max Width: 48″
3QLT/4QLT/2.75QLT
4 1/4″ point to point (3QLT)
5 5/8″ point to point (4QLT)
3 7/8″ point to point (2.75QLT)
Stainless Steel Thickness: 0.024″-0.029″
Other Metal Thickness: 0.024″-0.032″
Max Width: 48″
Mosaic
5″ high point to point
2.435″ wide point to point
Stainless Steel Thickness: 0.029″
Other Metal Thickness: N/A
Max Width: 45″
Diamond
5″ high point to point
2.435″ wide point to point
Stainless Steel Thickness: 0.029″
Other Metal Thickness: N/A
Max Width: 45″
Checkerboard
4″ squares
Stainless Steel Thickness: 0.029″
Other Metal Thickness: N/A
Max Width: 44″
Square
4″ squares
Stainless Steel Thickness: 0.029″
Other Metal Thickness: N/A
Max Width: 44″
Harlequin
4″ squares
5 5/8″ point to point
Stainless Steel Thickness: 0.029″
Other Metal Thickness: N/A
Max Width: 45.25″

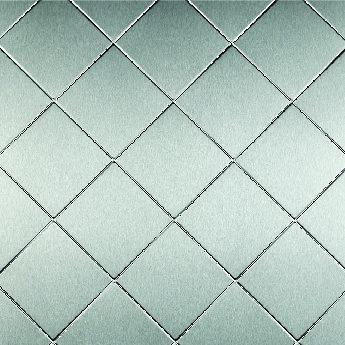

Diagonal
4″ squares
5 5/8″ point to point
Stainless Steel Thickness: 0.029″
Other Metal Thickness: N/A
Max Width: 45.25″
