Rigi-Bump® RB3
$0.00
Rigidized® Metals’ Rigi-Bump® is a collection of flat and dome top circular and square impressions pressed into a wide variety of sheet metals. Standard sheet dimensions are 48″ x 96″ and are available in stainless steel, aluminum, bronze, copper, brass, and mild steel. Custom bump patterns are available upon request. Rigi-Bump® patterns are also available powder coated and highlighted; with knurled bumps; and on a variety of micro textured finishes.
Note: Pattern depth is measured from the bottom of the sheet to the bottom of the bump/pattern.
Pattern Details
| Pattern | Dimension and Shape | Type of Bump | Direction of Bump |
|---|---|---|---|

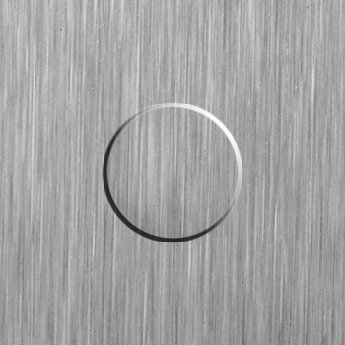

| RB3 | 1.375" Round | Flat | Up |
| Pattern Depth | Max. Thickness | Min. Center Spacing of Bump | |
|---|---|---|---|
| 0.024" | 0.060" | 2.000" |
